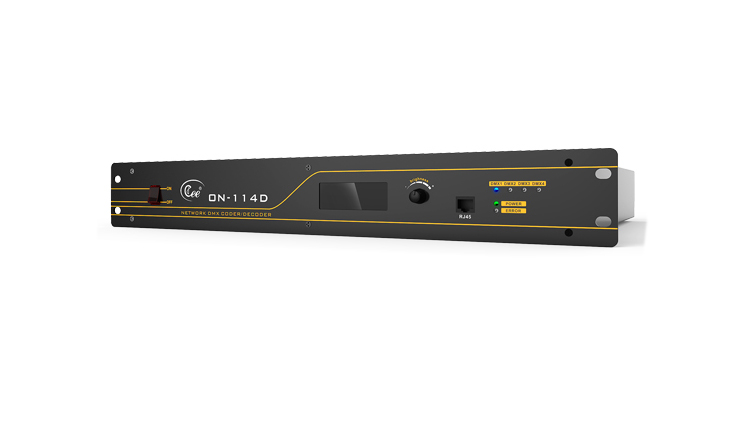

ON-114D Ethernet Network DMX Device
- Brand: Net.Do
- Type: ON-114D
Function and performance:
●RJ-45 network interface (can add the fiber interface),complies with IEE802.3 ether procotols,10/100M is adaptive.
●The Chinese liquid crystal of LCD shows the working state. and establishment, LED points out every working state.
●4 DMX512 interface, can set up for(network NET≥ DMX512)or DMX512 ≥ network NET)working way.
●Supports the network to be set up long-rang and concentrated controlling. To after the compatible ESTA-CAN and Earthnet agreement design interface norm.
● DMX512 refresh rate ≤25MS.
●The total capacity of network≥64 groups of DMX512.
Technical parameter：
●Working voltage:AC220V±10%, 50HZ±1 HZ
●Environment temperature:-10℃～+35℃
●Relative humidity: 20%～90%
●Working environment: Ventilating well, and free from large amount of smoke and dust.
Order information:
|
Module |
Description |
Dimension(:mm) |
|
ON-114D |
Network DMX Coder/The decoder |
|
