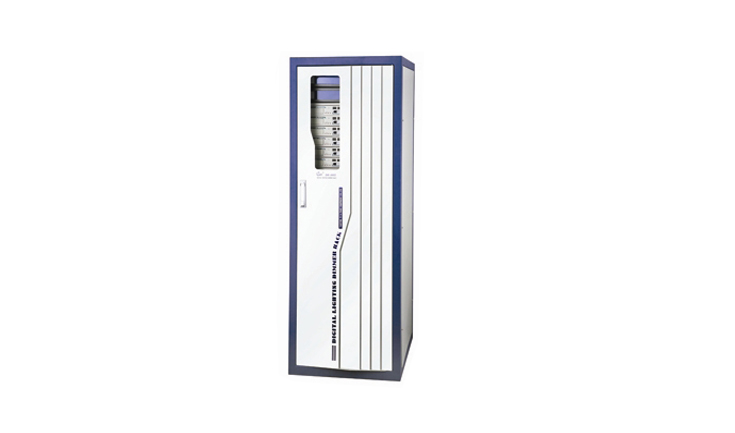

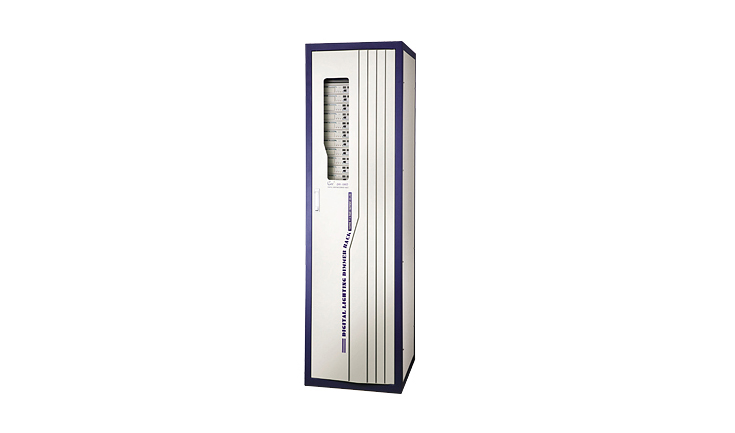

DR-i60D,DR-i72D,DR-i96D Network high LCD Dimmer Rack
- Brand: CEE
- Type: DR-i60D,DR-i72D,DR-i96D
DR-i96D、DR-i72D、DR-i60D Network high LCD Dimmer Rack
Function and performance：
●in two sets at the embedded Ethernet controller and 1024 level of triggering systems, the full-duplex hot backup work.
● the standard double RJ-45 network connection and the double DMX-512 connection disposition (coca buys optical fibre connection) to control the signal input, but simultaneous reception random two group of DMX-512 signal, composition many kinds of control mode.
● the support network long-distance establishment and the centralism monitoring, conforms to the IEE802.3 ether network protocol, backward compatible ACN advanced network control protocol.
● voltage automatic compensation function, when input voltage change, the output voltage may the automatic control maintenance be consistent.
● supply frequency automatic tracking function.
●intelligent air blower control function, according to temperature automatic control air blower switch.
● feeds back the (REPORTING) function: May feed back, monitor each silicon cabinet the active status, the scene adjusts the light function automatic control, the realization, to the light, the urgent accent light.
●10 scene records, editor, replay function.
●10 accent light curve also may the user from the definition (for example linearity, switch, several powers of exponent and so on).
●adopt imported high quality 80A silicon ,ensure each return route independent preheating value (0-100%) and restriction value (0-100%) hypothesis function.
●60 or 72 or 96 group’s outputs (6KW/ch).
Technical Parameter:
● input power supply: Three groups of 5 wire system/single-phase three-wire systems, 50Hz±2Hz, and single-phase operation voltage 220V±10%AC.
●control connection: Double DMX-512(1990), the double RJ-45 network connection (coca buys optical fibre connection).
● the ambient temperature: - 10℃~+35℃, ventilates is good.
● relative humidity: 20%~90%, does not have the mist and dust.
● atmospheric intensity of pressure: 86~106Kpa.
Order Information:
|
Model |
Description |
Dimension(mm) |
Weight |
|
DR-i60D |
60channel (6kw/channel),digit lighting |
565*600*1500 |
260kg |
|
DR-i72D |
72channel (6kw/channel), digit lighting |
565*600*1500 |
290kg |
|
DR-i96D |
96channel (6kw/channel),digit lighting |
565*600*1900 |
350kg |
